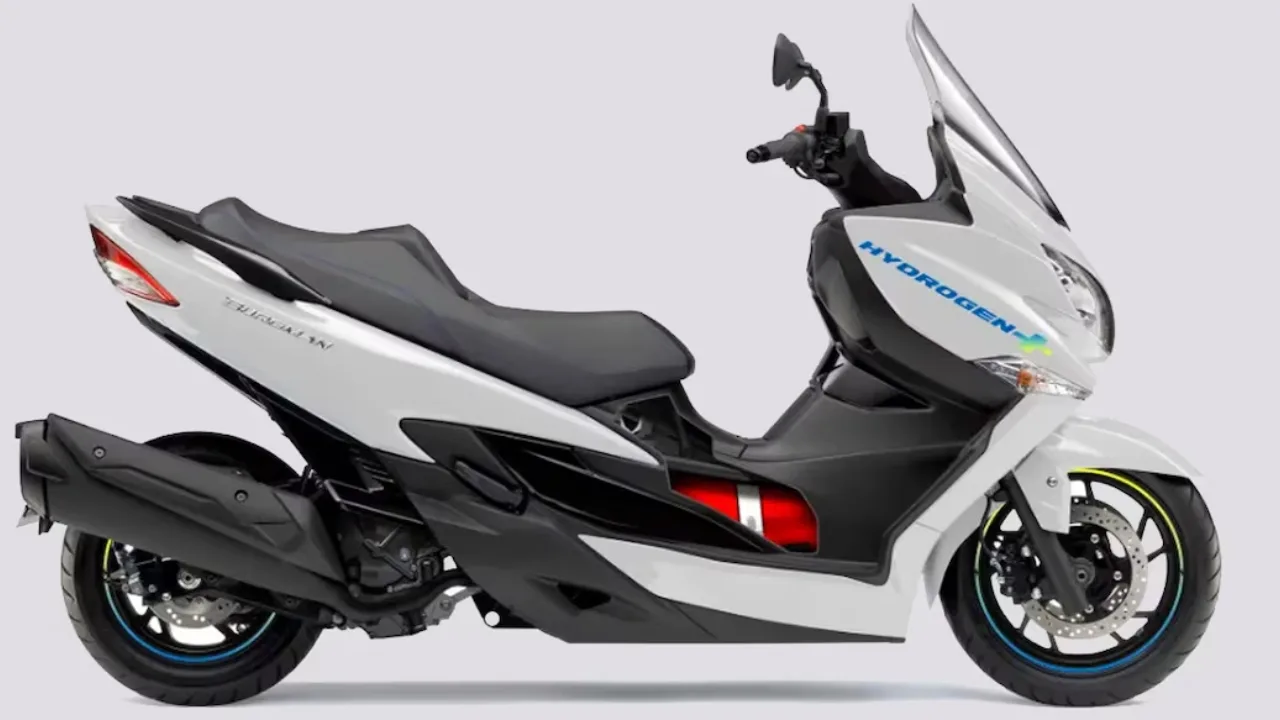

Toyota Hydrogen Scooter Patent Revealed: Swappable Fuel Cell Tech Based on Suzuki Burgman 400

Based on the chassis of an older Suzuki Burgman 400, this concept focuses on a “swappable” tank system that could potentially solve the long charging times of electric scooters. We’ve analyzed the unique canister mechanism and the cross-brand collaboration behind this project to bring you the ultimate breakdown.

Swappable Hydrogen

Toyota’s solution to the lack of hydrogen infrastructure is a removable hydrogen tank. Instead of waiting at a specialized high-pressure station, you would simply swap a pre-filled, pressurized canister at a kiosk—identical to how battery swapping works for companies like Gogoro or Honda’s Mobile Power Pack.

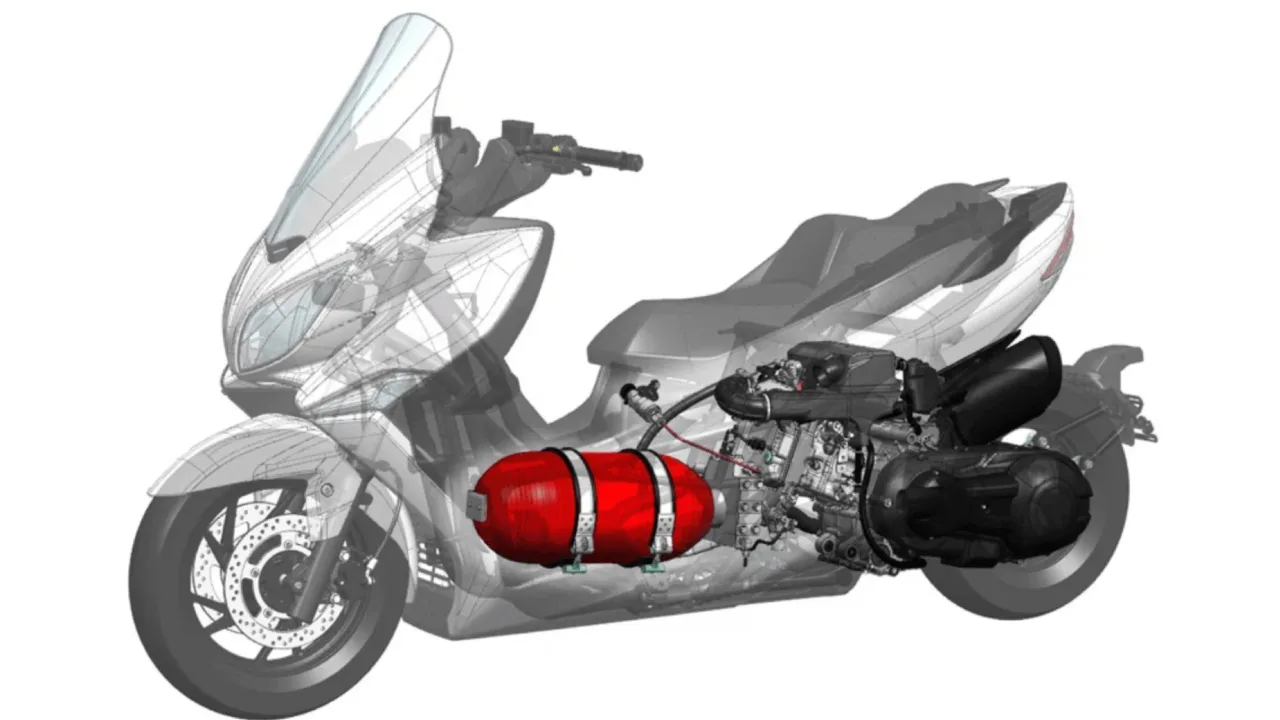

• Placement: The canister sits in a cradle near the floorboard area.

• The Mechanism: Toyota patented two distinct removal methods:

  1. Hinged Mechanism: The cylinder holder swings out to one side for easy access.

  2. Scissor Linkage: A retractable arm system that pushes the tank outward from the body of the scooter.

• Purity: Using pre-filled cylinders ensures the hydrogen remains uncontaminated, which is vital for the sensitive membranes in a fuel cell system.

Fuel Cell vs. Combustion

There is a major technical divide in hydrogen two-wheelers. While Suzuki has been testing a Hydrogen ICE (which burns hydrogen in a modified engine), Toyota’s patent is for a Hydrogen Fuel Cell (FC).

• The Difference: A fuel cell doesn’t “burn” fuel; it uses a chemical reaction to generate electricity, which then powers an electric motor.

• Emissions: The only by product is pure water, which is exhausted through a dedicated vent.

• Efficiency: Fuel cells are generally more efficient than combustion engines, though they are currently more expensive to manufacture.

The Global Hydrogen Alliance

This project isn’t a solo effort. Toyota and Suzuki are core members of HySE (Hydrogen Small mobility & Engine technology), alongside Honda, Yamaha, and Kawasaki. This alliance aims to standardize hydrogen tanks and engines for motorcycles, drones, and small boats.

• Historical Roots: The scooter in the patent is based on a prototype first seen in 2011, which Suzuki even donated to the London Metropolitan Police for real-world trials in 2017.

• Indian Context: Bajaj Auto (via its Chetak Technology Ltd subsidiary) has also confirmed in early 2026 that it is exploring hydrogen fuel for its future two- and three-wheeler portfolio to hedge against lithium supply chain issues.

Pros & Cons Summary

Pros	Cons
Instant Refuel: Tank swapping takes seconds, not hours.	Infrastructure: Hydrogen kiosks currently don’t exist in most cities.
Lighter: Hydrogen tanks can be lighter than high-capacity lithium batteries.	Cost: Fuel cell stacks use rare metals (like platinum), making them pricey.
Clean: Zero tailpipe emissions, only water vapor.	Complexity: The plumbing for high-pressure gas is more complex than wiring.
Cold Weather: Hydrogen doesn’t lose range in winter like batteries do.	Safety Perception: Public wariness regarding high-pressure hydrogen storage.

Is it a reality or just a patent

• Status: A patent filing. While the technology is proven (from the London police trials), the commercial viability depends entirely on the creation of a “Hydrogen Swapping Network.”

• Timeline: Don’t expect this in showrooms before 2028–2029. However, the fact that Toyota is refining the practicality of tank removal suggests they are looking at a mass-market execution, not just a lab experiment.
